Lazy Loading Individual Vue Components and Prefetching

Lazy Loading Individual Vue Components and Prefetching

Filip Rakowski
Filip Rakowski
September 3rd 2019
This entry is part 3 of 6 in the series Vue.js Performance

The purpose of lazy loading is to postpone downloading parts of your application that are not needed by the user on the initial page load which ends up in much better loading time.

In the previous article, we’ve seen that we can drastically reduce bundle size by lazy loading every route in separation. Even though this technique will give you a massive size reduction there are still plenty of things that we can lazy load to save even more of it.

In this article, we will explore which types of components can be loaded lazily and, more importantly, how to handle the waiting required for them to download.

Which components should you load lazily?

The answer to this question is trivial and intuitive - everything that is not required on initial render.

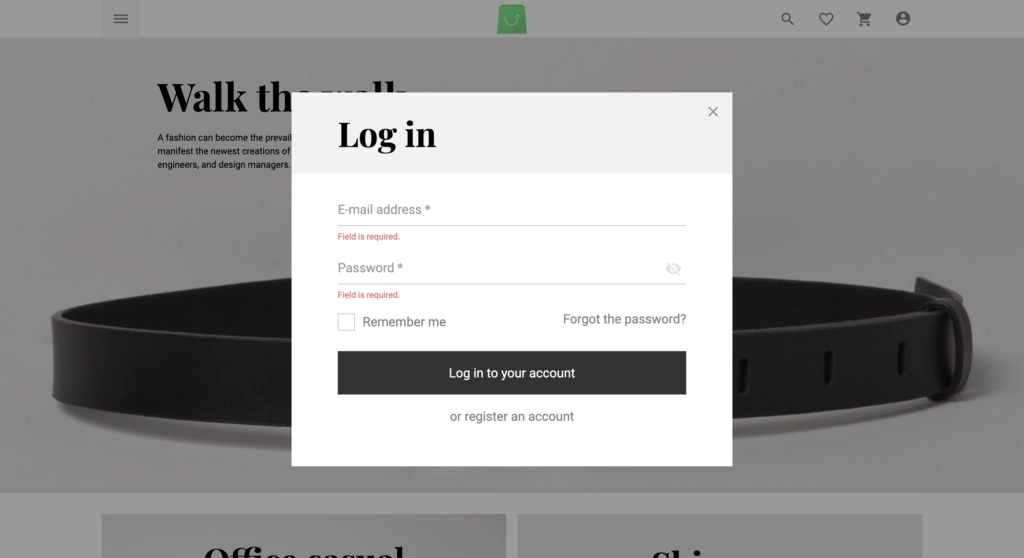

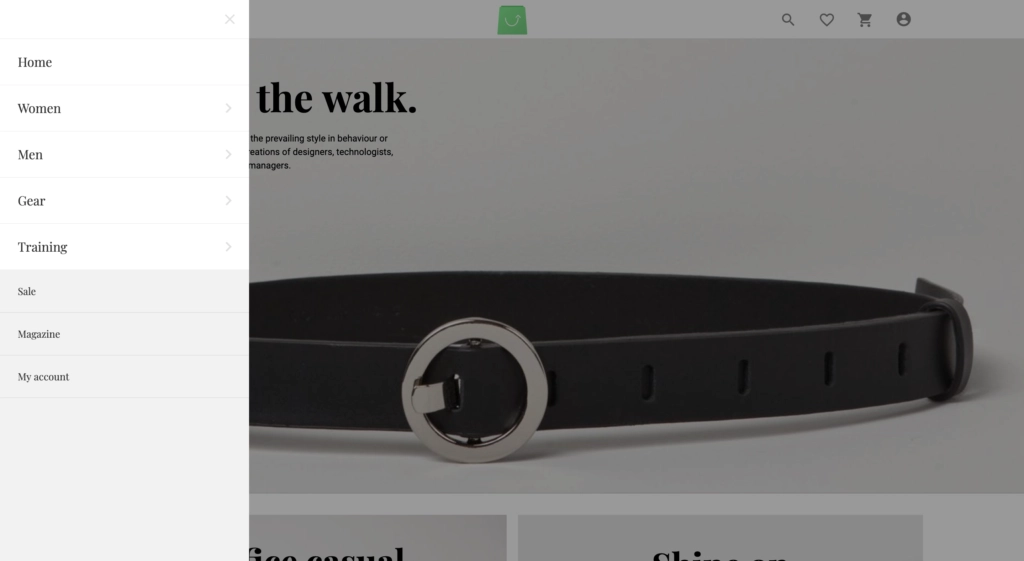

This usually means everything that the user doesn’t see until he/she interacts with our app in some way. One of the most common examples are components that we usually conditionally hide with v-if directives like modal windows or sidebars. Those components are usually good candidates to be loaded lazily.

It is important to understand exactly when a code-splitted component is fetched. In the first part of this series you read that generally speaking we can assume that any lazily loaded resource is downloaded when it’s import() function is invoked and in case of Vue component that happens only when component is requested to render.

Let’s dig a little bit deeper. Take a look at below example:

<modal-window v-if="isModalVisible" />
<modal-window v-show="isModalVisible" />

Assuming isModalVisible variable is set to false even though both statements will take the same effect from the user point of view the v-if directive will remove component from the DOM completely while v-show will just add display: none CSS property.

An implication of that behavior is that with v-show component is always downloaded, no matter what’s the value inside it and for v-if directive component is downloaded only after it’s value will become true so remember that you should always use v-if with lazy loaded components!

Interesting side note: When you pass a component to components property of Vue instance under the hood it’s checking if passed value type is object or a function. If it’s a function the invocation happens only when component is requested to render. This is why the trick with v-if works.

So it turns out that all we need to do to lazily load any component is combining v-if directive and dynamic import statement like this:

<template>
  <div>
    <button @click="isModalVisible = true">Open modal</button>
    <modal-window v-if="isModalVisible" />
  </div>
</template>

<script>
export default {
  data () {
    return {
      isModalVisible: false
    }
  },
  components: {
    ModalWindow: () => import('./ModalWindow.vue')
  }
}
</script>

Impact on user experience

Lazy loading components can save a lot of time on initial download, but it comes with a price that the user has to pay later.

All those saved bytes are still needed for our application to work properly. Our users will need to download them at some point, which means they have to wait for the postponed resource to be downloaded. That can result in bad or extremely bad user experience, depending on how long time it takes to download the resource.

Such delay is much worse for components than whole pages because we’re not used to wait for individual parts of the UI to appear. When we click a button, we expect a reaction immediately. If nothing happens when we interact with a website, we either perceive the application as slow or broken, and most of us leave the site.

According to RAIL model guidelines every user input should generate a response in under 100ms.It is almost impossible to achieve such a low response time if we have to download resources before the application is able to respond. So what we can do?

It turns out that the solution is extremely simple. It’s called prefetching.

Prefetching

Prefetching in simple words, is just downloading certain resources that may be needed in a future before they are requested by the browser. In our case this might be a lazily loaded modal window. It also makes sense to prefetch lazily loaded routes. For example if we’re in a Category page of ecommerce shop we could prefetch Product page because there is a high chance user will visit it.

It’s important to note that the prefetching will only start after the browser has finished the initial load and becomes idle. Prefetching does not affect your page load or how fast your app becomes interactive (TTI).

Prefetching allows us to eliminate bad UX consequence of lazy loading without affecting page performance at all. How cool is this?

Interesting side note: If you’re using Nuxt.js every <nuxt-link> in currently opened route will prefetch it’s content automatically. You can read more about this behavior here.

To prefetch any resource (usually we prefetch the code-splitted ones like off-screen components or routes) the only thing that you need to do is put it into a <link rel="prefetch" href="url" /> tag. That’s all!

It’s not so easy when we use webpack that generates names of our bundles depending on order of module resolution (for example entry point becomes main.js, first code-splitted element encountered by webpack becomes 0.js, next one 1.js etc). Fortunately there is a feature that can help us easily prefetch any resource - magic comments.

Webpack’s magic comments are special phrases that are affecting build process when used in a comment. One of such magic comments is /* webpackPrefetch: true */. Simply put this comment inside dynamic import function like in the example below and your resource will be prefetched:

components: {
  ModalWindow: () => import(/* webpackPrefetch: true */ './ModalWindow.vue')
}

At the moment of code execution webpack will look for every magic comment like this and dynamically (which means at the code execution time, not in a build time) add <link rel="prefetch" url="resource-url" /> tag to <head> section of your application:

<link rel="prefetch" href="path-to-chunk-with-modal-window" />

Now when user will request chunk with ModalWindow.vue it will already be in a memory and appear instantly.

TIP: If you’re using Vue CLI 3 every lazily loaded resource is prefetched by default!

Important: Depending on your build configuration prefetching might work only on production mode.

Instead of magic comments you can use more general solution like webpack prefetch plugin or workbox.

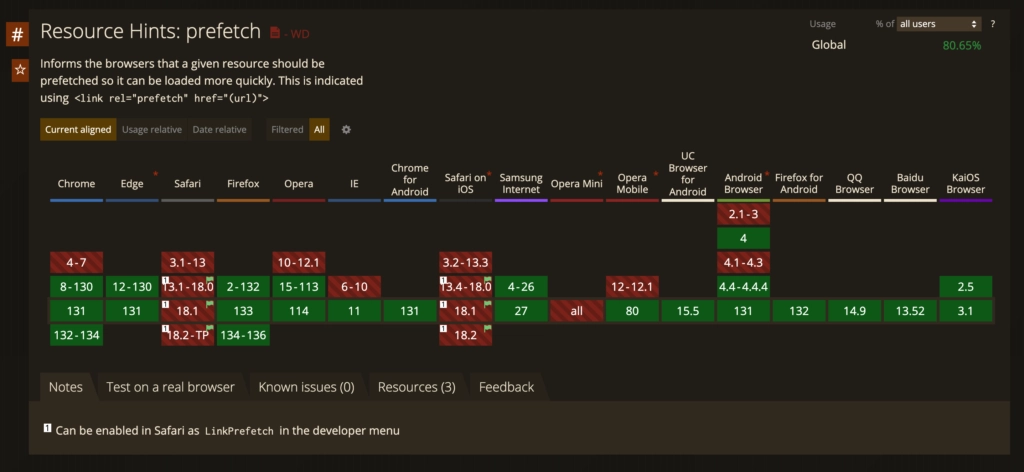

Prefetching seems to solve all of our problems but browser support for this feature is not there yet for some of them. Especially lack of the Safari support can be painful.

Async components

Thankfully Vue has a very useful feature called async components that solves this problem gracefully.

Async component is basically an object containing:

  • dynamic component that will be loaded lazily represented by import() function

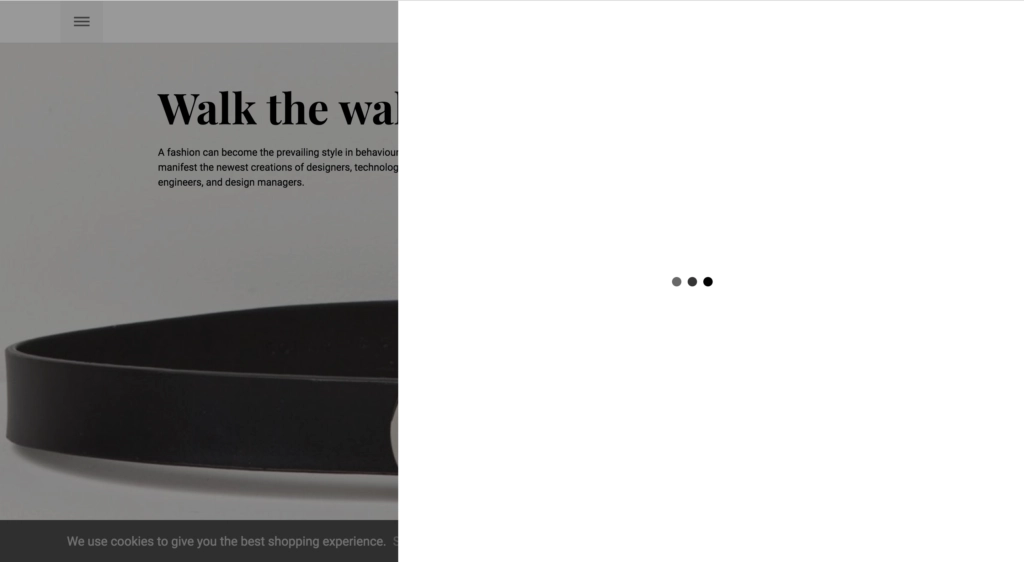

  • loading component that will be shown until dynamic component is loaded

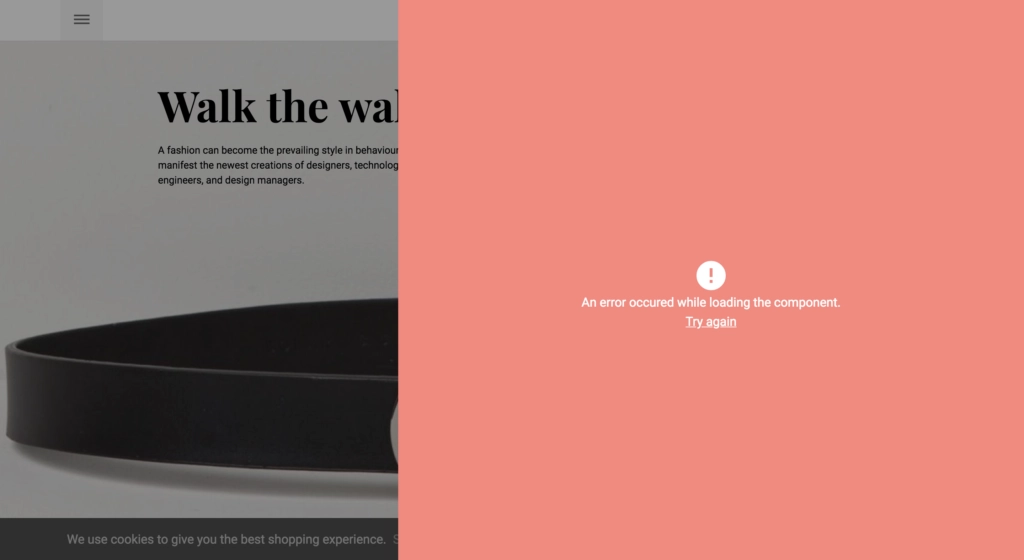

  • error component that is shown only when dynamic component loading fails (in other words when Promise is rejected)

The second property is a great way to deal with browsers that don’t support prefetching while the third one let us deal with error handling in offline-first application in rare cases when the prefetching fails.

Async components are also wrapped in a function, like dynamic imports are. So they can be consumed in the same way any component is.

const ModalWindow = () => ({
  component: import('./ModalWindow.vue'),
  loading: LoadingComponent,
  error: ErrorComponent,
  // The error component will be displayed if a timeout is
  // provided and exceeded. Default: Infinity.
  timeout: 3000
})

export default {
  components: {
    ModalWindow
  }
}

This is how I made use of async components in Vue Storefront default theme:

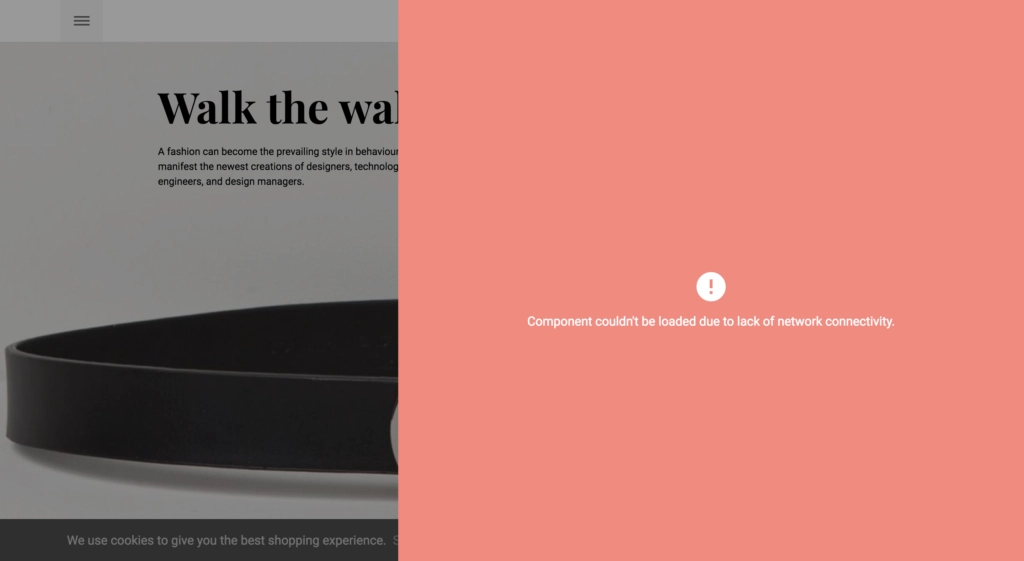

TIP: You can display different error message if fetching fails due to a lack of network connectivity by using navigator.onLine property. The navigator object holds information about the browser.

Summary

In this article we digged really deep into lazy loading of individual components. Even though our users will need to download lazily loaded chunks at some point, which means they have to wait for the postponed resources to be downloaded we can download them before they’re requested with prefetching and in case it’s not supported by our browsers we can still deliver great waiting experience with async components.

What’s next

Now that you can call yourself master of lazy loaded components! It’s time to master another area of Vue performance! In the next part we will learn when it’s wise to lazy load third party libraries, how to identify which one of them are too big and how to easily find smaller equivalents.
